Our Services

State-of-the-art machining and specialised process equipment — delivering precision at scale across Tamil Nadu.

CNC LASER CUTTING SYSTEM

Laser Cutting

Our CNC Fiber Laser Cutting service delivers exceptional precision for steel, stainless steel, aluminium and alloy sheets. With a clean-edge finish and minimal heat-affected zone, laser cutting is ideal for intricate profiles, large batch production and complex shapes that conventional cutting cannot achieve.

Serving industries in Coimbatore, Chennai, Erode and Hosur — we handle job work for fabricators, OEMs and direct industrial clients with fast turnaround times.

Material Types
MS, SS, Alloy, Aluminium
Thickness Range
0.5 mm – 25 mm
Cutting Accuracy
± 0.1 mm
Max Sheet Size
3000 × 1500 mm
3-ROLL PIPE BENDING

Pipe Rolling

Our three-roll pipe rolling service produces precise circular curvature in pipes and tubes of varying diameters and wall thicknesses. Used for coils, bends, rings and curved assemblies in pressure piping, heat exchanger connections and structural applications.

We process carbon steel, stainless steel, duplex and alloy pipes with consistent ovality and dimensional accuracy — serving process industries across Coimbatore, Erode and Chennai.

Pipe Diameter
25 mm – 400 mm OD
Wall Thickness
Up to 25 mm
Materials
CS, SS, Duplex, Alloy
Bend Radius
Custom per requirement
3-ROLL PLATE ROLLING MACHINE

Plate Rolling

Heavy-duty plate rolling for forming cylindrical, conical and elliptical shells used in tanks, pressure vessels and structural components. Our plate rolling capability handles thick plates with tight radius control and minimal springback deviation.

From small shell courses to large-diameter tank shells, our rolling service is trusted by fabricators and EPC contractors across Coimbatore, Chennai, Hosur and Erode districts.

Plate Width
Up to 2500 mm
Plate Thickness
2 mm – 50 mm
Diameter Range
300 mm – 5000 mm
Materials
MS, SS, Alloy, Duplex

Process Equipment Expertise

High-value engineered equipment for evaporation, drying and bulk material handling — built to exacting process specifications.

01

Multiple Effect Evaporators

Multi-stage evaporation systems that reduce steam consumption by reusing vapour energy across effects. Custom-designed for pharmaceutical, chemical and food-processing industries in Coimbatore and Chennai.

📐 Capacity: 500 to 50,000 kg/hr water evaporation ⚙️ SS 316L / Duplex Construction
02

Agitated Thin Film Dryers

Mechanically agitated thin film on heated surfaces for continuous processing of heat-sensitive, viscous and sticky products. Ideal for APIs, dyes and specialty chemicals.

📐 Surface Area: 0.1 to 20 m² ⚙️ ATFD in SS 316L / Hastelloy
03

Paddle Dryers (Sludge Dryers)

Indirect contact hollow-paddle dryers for dewatering ETP sludge, pharma wet cake and industrial paste. Energy-efficient with low exit moisture content.

📐 Capacity: 50 to 5000 kg/hr ⚙️ MS with SS Contact Parts
04

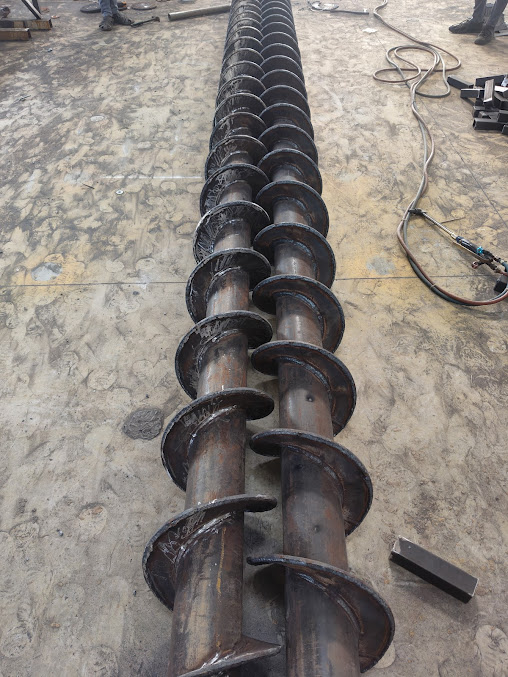

Screw Conveyors

Helical screw conveyors for bulk powder, granule and paste conveying in horizontal, inclined and vertical configurations. Custom pitch, diameter and trough design for your process.

📐 Diameter: 100 mm to 600 mm ⚙️ MS, SS 304, SS 316L Options

Need a Job Work Quote?

Send us your drawings or specifications — our team will respond within 24 hours.
